Square Truss
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Item No :
JY520-QSOrder(MOQ) :
1mPayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Guangzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :

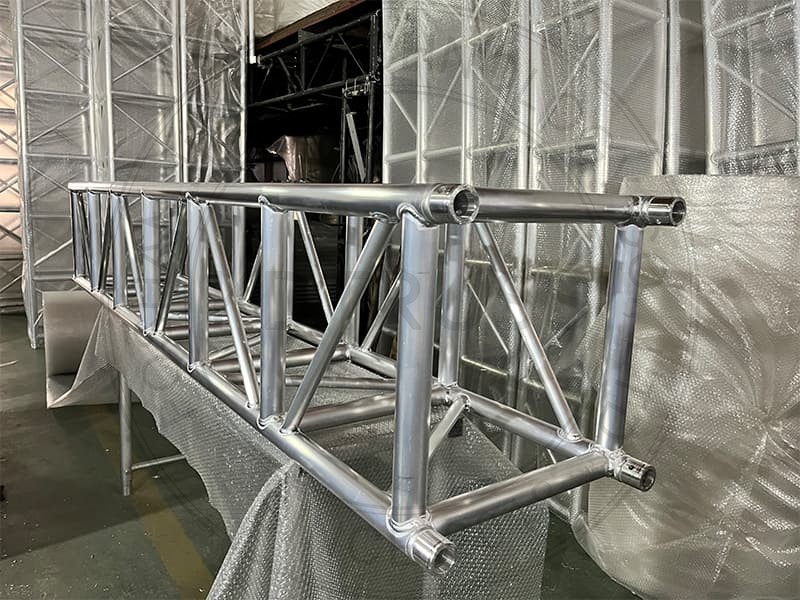

22kg/m520*520mm Aluminum Outdoor Stage Roof Truss
520mm Stage Roof Truss is configurated with main tube 50x3mm, horizontal tube 50*2mm and bracing 25x2mm. Most of customers would like choose it as beam truss, can reach 20m length with 1000kg loading capacity. Factory price with TUV certification.
| Section type： | 520mm Stage Roof Truss |
| Section Size: | 520*520mm |
| Standard Lengths: | 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m |
| Material: | 6082-T6/6061-T6 |
| Main tube: | ∅50*3mm |
| Horizontal tube: | ∅50*2mm |
| Brace tube: | ∅25*2mm |
| Connector included: | 4*spigots, 8*pins, 8*R Clips |
| Bending stress resistand span: | 20m |
| Straight towe height: | 16m |
| Surface treatment: | Black power coating, Sliver color. |
Our Aluminum Stage Frame Truss Structure Advantage:
1. With CE/TUV certification;
2. Can be used indoor and outdoor Appications;
3. Lightweight for easy trasport
4. Resistant to Heat, Cold, Moisture and Corrosion;
5. Secure conical connection system for quick set up;
6. Long lasting when used within laoding specification;
7. Certificed and Inspected to meet high safety standards.
In order to provide the optimum safety and reliability,all the materials are Aluminum Alloy 6082- T6 or 6061-T6. All the welding rods are same as Global Truss.
To avoid this kind of incident. We will provide the necessary information to customers. Such as TRUSS load table,roof system strength calculation,welding rod TUV certification,material analysis etc.
Tell us your requirements, Customized size is available according to your requirements.
1. What is the width, depth, and height of the truss(stage) you want?
2. What connection type do you want, spigot type or bolt(screw) type?
3. What is the weight you will hang on the truss?
A detailed quotation will be prepared as soon as receiving your detailed information.
Size for optional:
100*100mm , 200*200mm, 290*290mm, 300*300mm, 350*350mm, 390*390mm, 400*400mm, 300*400mm, 450*450mm, 400*500mm, 500*600mm, 520*760mm, 600*760mm, 1010*600mm etc.
Spigot connecting way for hanging the truss system
Contact us now! Just let us know you from our website then we can make your logo on the truss for free.
If you need bigger or smaller truss just let us know. we have different size truss can help you.
100*100mm Aluminum Lighting Mini Truss made of Aluminum Alloy 6082-T6. it is Lightweight easy to Assemble. Decorative Mini Truss can be used for any exhibition display booth or exhibit hall display for convention centers.
Read More
200*200mm Aluminum Exhibition Box Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Main tube is 30*2mm and Brace tube is 16*2mm. The Box trus system is a 4-point truss system. This truss offer an optimum lifting capacity and indicate a low transport volume with its light weight constroction. Conical connected system is convenient for assembly and collection. It is widely use in trade fair, Shop fitting and Advertisement ect.
Read More
290mm Lighting truss made of Aluminum Alloy 6061-T6 / 6082-T6. Aluminum Alloy itself very low in weight, easy to use, saving installation time and manpower. Aluminum is corrosion resistant, less maintenance, no corrosion protection required. and it can be reused becasue it has high corrosion resistance. Recycle materials , environmental protection. 290*290mm Aluminum spigot truss is multipurpose truss. It can be used in different areas. Such as Wedding party, Exhibition, theatre shows, musicals, trade show, activities and so on.
Read More
400mm Aluminum Roof Truss is a 4-point truss system. Our aluminum Trus system are designed for a variety of application and can by used to support lighting, sound equipment, cameras, digital signs, Stage constructiion, as well as the larger summit industry.
Read More
450*450mm Aluminum Truss is multipurpose truss made of Aluminum Alloy 6082-T6. Most of India market customers would like choose it as pillar truss, can reach 12m high. Factory price with TUV certification. Usually configurated in medium duty truss roof system as beam truss and heavy duty Roof Truss System as pillars truss.
Read More
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Read More
400*600mm Rectangle Heavy Duty Stage Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Bending stress resistand span is 20m, Max. loading capacity is 1000kg. Usually as beam truss.
Read More
